Split Text Step

The Split Text Step takes one string and breaks it into several smaller strings. It makes an array of these smaller strings using a specific character or text you choose to divide them. You can use this step to pull out specific bits of information from a longer piece of text.

How to Use the Split Text Step

Use this step to turn a text string into a list of separate items.

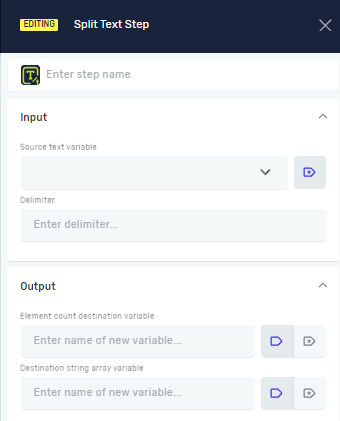

Step 1: Add the Split Text Step

1. Drag the Split Text Step into your process flow.
2. Click on the step to set its options.

Step 2: Set Up Input Parameters

Source text variable (Required)

• This is the variable that already holds the text you want to split.
• Example: If you have a variable called fullAddress with "123 Main St, Anytown, USA" in it, this is your source text.

Delimiter (Required)

• This is the character or text that tells the step where to cut the source text.
• You can use an existing variable or type the value directly.
• Example: To split "123 Main St, Anytown, USA" by the comma, you would use , as your delimiter.

Step 3: Set Up Output Parameters

Element count destination variable (Required)

• This is a new or existing number variable. It will hold the total number of items created in the resulting string array.
• Example: If "123 Main St, Anytown, USA" is split by ,, this variable would hold 3.

Destination string array variable (Required)

• This is a new or existing variable that holds an "array of strings". It will hold the actual smaller strings after the split.
• Example: If "123 Main St, Anytown, USA" is split by ,, this variable would contain ["123 Main St", " Anytown", " USA"].

Parameters Explained

Step name (Optional)

• A custom name for this step in your process. This helps you find it easily in the Process Editor.

Related Articles

• Set Variable Value Step - Learn how to define and update variables in your process.
• Create New List Step - Learn how to create new lists, which can be helpful when working with arrays.
• For Each Loop - Learn how to go through each item in the string array created by the Split Text Step.
