Sap Enter Text In Field Step

This step puts text into a specific field in an open SAP session. You use it to fill in fields like document numbers, dates, or material codes when you're automating tasks in SAP GUI.

How to Use SAP Enter Text In Field Step

This step helps you automate typing data into SAP fields.

Step 1: Add the Step to Your Workflow

1. Drag the SAP Enter Text In Field Step into your process.

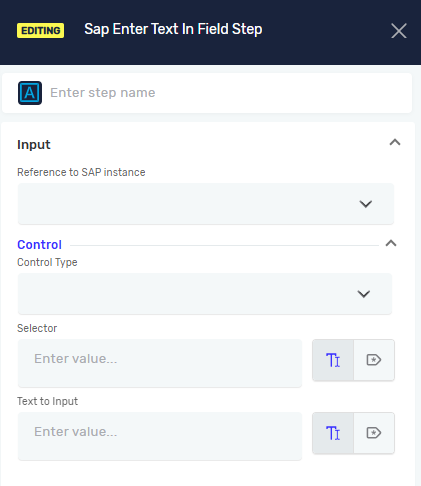

Step 2: Set Up the Step Parameters

1. Reference to SAP instance: Pick the SAP session reference. This needs to be the same as the reference you set up in the Open Sap Session Step.
2. Control Type: Choose the type of control element from the list.
3. Selector: Type in the unique name for the field. This could be an ID, name, or path.
4. Text to Input: Give the text or variable value you want to put into the field.

Important: Make sure the Selector points to the right field. If the selector is wrong, the automation won't find the field.

Parameters Explained

Step name (Optional)

• A custom name for this step. It labels the step box in the editor.

Reference to SAP instance (Required)

• Shows which active SAP session will get the text.
• Example: mySapSession
• Use this to connect to a session opened by the Open Sap Session Step.

Control Type (Required)

• A list of control element types.
• Example: Edit Box, Text Field
• Choose the type that matches the SAP field you're working with.

Selector (Required)

• The unique name for the field in the SAP interface.
• Example: wnd[0]/usr/ctxtVBAK-VBELN
• This tells the automation exactly where to put the text.

Text to Input (Required)

• The text or variable value to put into the chosen field.
• Example: "1234567890" or myDocumentNumberVariable
• You can use a variable set up with the Define Variable Step or Set Variable Value Step.

Common Issues

Problem: The automation doesn't put text into the field. Solution:

1. Check the Selector value. Make sure it correctly finds the field.
2. Confirm that the Reference to SAP instance matches an active SAP session.
3. Make sure the Control Type is right for the field.
